GRM Flow Products multi-port gauge valve is supplied in 316 stainless steel, ½” MNPT x (3) ½” FNPT thread connetions, straight pattern, and rated for 10,000 PSI

PRODUCT DETAILS:

  • Hard Seat
  • Service to 10,000 PSI @ 100° F
  • One 1/2″ Male Port & Three 1/2″ Female Ports
  • Two piece non-rotating stem plug
  • 316 Stainless Steel Body
  • PTFE stem packing
  • Blowout proof stem provides positive back seal in full open position

Multi-Port Gauge Valve

SIZE PART #
1/2" NM150002

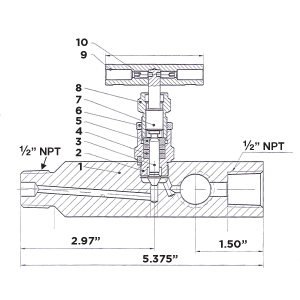

Image Legend

# Part Material
1 Body 316 SS
2 Bonnet 316 SS
3 Lower Stem 316 SS
4 Packing PTFE
5 Gland 316 SS
6 Lock Nut 316 SS
7 Upper Stem 316 SS
8 Packing Bolt 316 SS
9 Handle 304 SS
10 Set Screw 18-8 SS
