Please see downloads for product specification information.

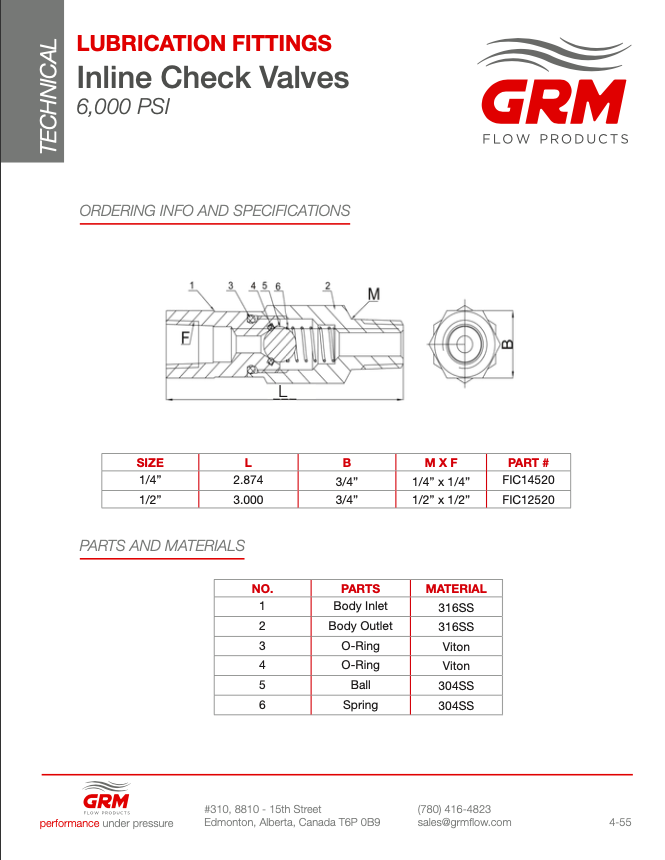

| PRESSURE | SIZE | L | B | MXF | PART # |
|---|---|---|---|---|---|
| 6,000 PSI | 1/4" | 2.874 | 3/4” | 1/4" X 1/4" | FIC14520 |
| 6,000 PSI | 1/2" | 3.000 | 3/4” | 1/2" X 1/2" | FIC12520 |
| 10,000 PSI | 1/4" | 2.874 | 3/4" | 1/4" X 1/4" | FIC13520 |
| 10,000 PSI | 1/2" | 3.000 | 3/4" | 1/2" X 1/2" | FIC15520 |
| PART | MATERIAL |
|---|---|
| Body Inlet | 316SS |
| Body Outlet | 316SS |
| O-Ring | VITON |
| O-Ring | VITON |
| Ball | 304SS |
| Spring | 304SS |
| PART | MATERIAL |
|---|---|
| Body | 316SS |
| Packing | 304SS |
| O-Ring | VITON |
| Check Ball | 304SS |
| Spring | 304SS |
| Body | 316SS |
